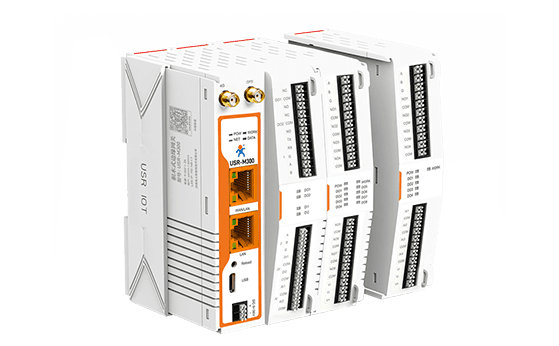

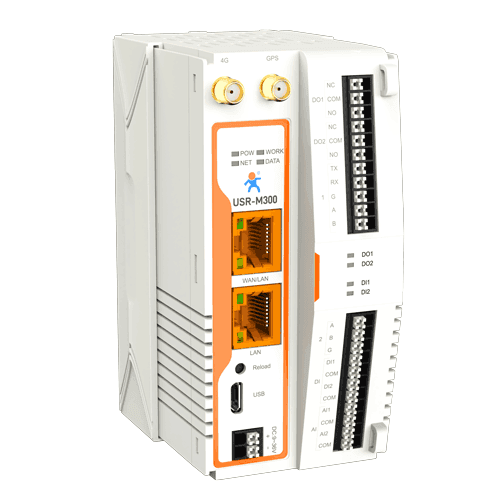

Gateway IoT - USR-M300
Garantía legal de 6 meses por fallas según la Ley del Consumidor (SERNAC), adicional a la garantía del fabricante.
Lo que importa.
El USR-M300 ofrece procesamiento de datos local y conectividad en la nube, compatible con protocolos como Modbus y MQTT. Incluye VPN, firewall, y opciones de red flexibles (celular, Ethernet, ADSL). Sus capacidades de monitoreo remoto, expansión de E/S y soporte para GPS lo convierten en una solución confiable para entornos industriales IoT.
|
Specification | |
|
Power supply | |
|
Power input |
DC 9~36V |
|
Working current |
-- |
|
Serial port | |
|
No. |
2*serial port
Serial port 1: RS232/485
Serial port 2: RS485
|
|
Band rate |
600~230400bps, user-defined baud rate is supported |
|
Data bits |
7, 8 |
|
Stop bits |
1, 2 |
|
Parity |
None, Even, Odd |
|
IO interface | |
|
DI |
2*DI, 0 - 2 V detected as logic low, 9 - 36 V detected as logic high |
|
DO |
2*Relays,
DC contacts rating @R(at resistive load)10A / 28V DC
AC contacts rating @R(at resistive load)10A / 277V AC,NO
AC contacts rating @R(at resistive load)5A /250V AC, NC
|
|
AI |
2 x Analog input 4-20mA |
|
Physical characteristics | |
|
Dimension |
79.6x 58 x110 (mm) |
|
Housing |
ABS housing, IP30 protection |
|
Installation |
Din rail mounting, wall mounting |
|
EMC protection | |
|
ESD |
IEC61000-4-2,Level 3,class B,contact 6KV,air 8KV |
|
Surge |
IEC61000-4-5,Level 3,class B |
|
EFT |
IEC61000-4-4,Level 3,class B |
|
Indicator | |
|
POW |
ON: Gateway is powered up
OFF: Gateway is not power up
|
|
WORK |
When the device is working properly, it blinks for 1s frequency |
|
NET |
Blinking when the wan connects to internet
OFF when there is no network
|
|
DATA |
Blinking when serial port is transmitting data |
|
DO status |
Light on, the channel output is activated |
|
DI status |
Light on, the channel is activated by input signal |
|
Network | |
|
Cellular |
LTE Cat4, Global Frequency |
|
Ethernet |
1*WAN/LAN + 1*LAN
10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
|
|
Cellular | |
|
Frequency |
TDD-LTE: B34/38/39/40/41 FDD-LTE: B1/2/3/4/5/7/8/12/13/18/19/20/25/26/28/66 WCDMA：B1/2/4/5/6/8/19 GSM/EDGE:B2/3/5/8
|
|
SIM |
1*Micro SIM |
|
Antenna |
1*SMA-Female |
|
Software | |
|
Network Protocols |
ICMP,IPv4,IP,ARP,TCP,UDP,DHCP,DNS,HTTP,MQTT,SNMP |
|
Configuration method |
Built-in webpage |
|
Modbus Gateway |
Modbus RTU/TCP protocol conversion |
|
Linkage control |
Supported. Data collection points, DI, and AI can be used as trigger and executed by DO |
|
IP Routing |
Static routing |
|
NTP |
√ |
|
VPN |
PPTP, L2TP, *OpenVPN |
|
SNMP |
√ |
|
Others | |
|
Approvals |
CE*, FCC*, ROHS* |
